How is Water Treated

How Water is Treated

Prechlorination

Chlorine is added to the raw as it enters each plant. Chlorine kills microorganisms such as bacteria, protozoa, and viruses that may cause illness in humans. Chlorine also prevents the growth of algae at the treatment plant that may interfere with treatment of water and cause taste and odor problems. Enough chlorine is added to maintain a residual of 1 part per million or residual chlorine in water after filtration. A chlorine residual is needed to prevent re-growth of bacteria in the piping network otherwise known as the distribution system.

Coagulation/Flocculation

Alum (aluminum sulfate) is added to the water to destabilize natural fine particulate matter suspended in water. This process in known as coagulation. These particles enter water through land erosion, airborne contaminants, decay of natural organic matter such as plants and animal wastes, and discharges resulting from human activities. The impurities found in water suspensions consist of charged colloids (colloid - a very small solid suspended in water which varies in size, density and electric charge) ranging in size from 5 nm to 1 um and particulates greater than 0.5 mm. Most of these particles will not settle by gravity due to their charge and because they are lighter than water (their density is less than water). The addition of alum causes these particles and colloids to clump together to form heavier particles which will settle in water.

Alum is added quickly to the water at the plants using mechanical mixers. This process is known as Rapid Mix. After passing through the Rapid Mix process, the water travels through flocculation basins where it is gently stirred by slow moving paddles. Gentle mixing brings small particles into contact so that they will collide, stick together, and grow to a size that will readily settle. These large particles are referred to as floc. Formation of proper floc is necessary for particles to be removed during sedimentation and filtration.

Sedimentation

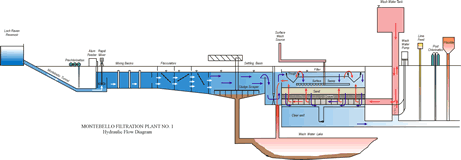

Click for full imageAfter flocculation, the water and floc moves slowly through large basins known as sedimentation or settling basins. The water moves very slowly through these basins due to their large size. This allows the floc to settle to the bottom of the basin. The floc that falls to the bottom of the basins is collected into a hopper by large rotating scrapers where it is removed several times daily by the plant operators. Clear water above the floc layer (referred to as treatment residuals) flows out of the sedimentation basin and to the filters. Removal of particles in the sedimentation basin improves the operation of the filters that comprises the next treatment process after sedimentation.

Sedimentation Basin- Click for full imageThe sedimentation process removes many particles including clay and silt based turbidity, natural organic matter, and other associated impurities. These impurities include microbial contaminants, toxic metals, synthetic organic chemicals, iron, manganese and humic substances. Humic substances come from soil are produced within natural water and sediments by chemical and biological processes such as the decay of vegetation. Removal of humic substances from drinking water is desirable since they form disinfection byproducts when chlorine is added to the water. At high concentrations, disinfection by-products such as trihalomethanes are a public health concern.

Filtration

Filtration Plant- Click for full imageThe last step in purifying the water is accomplished by passing water through a bed of sand and gravel. As water filters through the sand, the remaining particles of suspended matter are trapped in the sand bed. In the filtration process, water flows on top of the sand bed and travels through the bed until it is collected at the bottom in underdrains. Filtered water flows from the underdrains into clearwells or filtered water reservoirs. The rate of filtration is regulated using controllers. The filters must be cleaned periodically as material becomes trapped in the filter and reduces the rate of filtration. Cleaning of the filters is also needed to prevent solids from passing through the filters into the filtered water. To keep the filters operating at their best performance, the filter operators take each filter out of service so they can be backwashed. Backwashing cleans the filters by forcing clean water backward through the sand to remove the solids which are deposited in waste drains. Filters are backwashed on a rotating schedule to ensure that plants can continuously operate.

Click for full image

Fluoridation

Fluoride may be added to the filtered water at each of the plants to reduce tooth decay. The plants maintain fluoride levels of approximately one part per million in the treated water.

Post-chlorination

If needed, additional chorine is added to the finished water that leaves the water plants. Low levels of chlorine (approximately 0.2 to 1.0 part per million) must be maintained in the distribution systems pipes and home plumbing to prevent the growth of microorganisms.

Corrosion Control

Lime is added to the treated water at the water plants before the water is added to the distribution system. Lime (or calcium oxide) is added to raise the pH of the water to a level of about 8 standard units. The process reduces the ability of the water to corrode water mains and home plumbing materials such as copper, lead, and brass. Corrosive water can dissolve lead and copper. Excessive levels of dissolved lead and copper are public health concern particularly for young children.


Source: Baltimore City
